Pattern development
Pattern planning aligned to part geometry, draft, shrinkage, machining allowance, and repeat production.
Tooling and production support

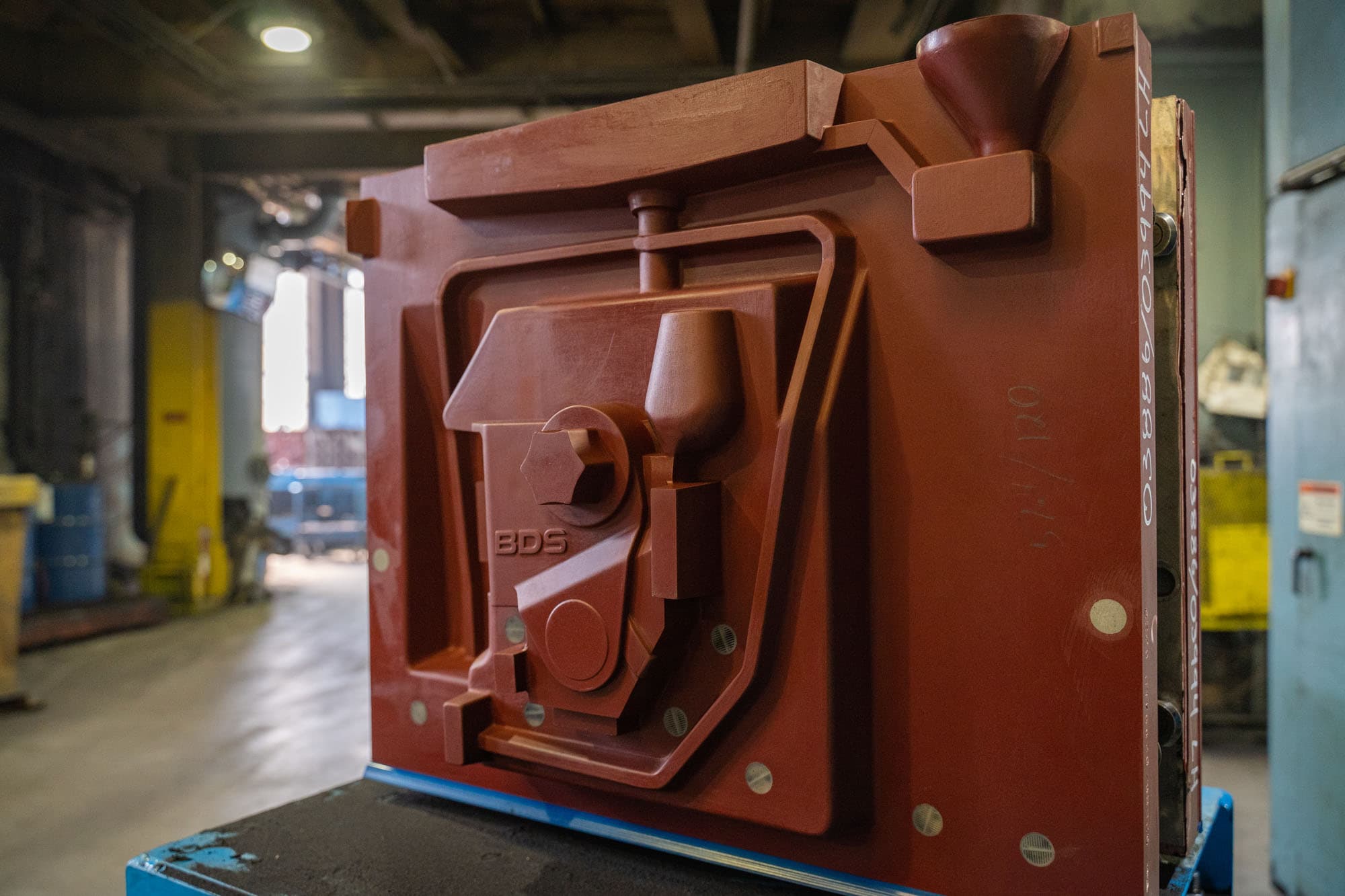

Pattern, Mould, and Die Making for Steel Castings
Design and fabrication support for patterns, moulds, and dies aligned to foundry requirements, component accuracy, and repeatable steel casting production.
From drawing to tooling
Practical patterns and moulds for repeatable casting production.
Tooling that fits the part
Build accuracy into the casting route.
Good tooling starts with a clear understanding of the component. We coordinate pattern, mould, and die requirements with the casting method, material, quantity, and downstream machining needs.
Capabilities
Tooling designed for repeatability.
Mould preparation
Moulding support for clean cavities, consistent dimensions, and reliable metal flow.
Die and tooling support
Tooling coordination for repeatable production and practical component manufacture.
Design-to-foundry review
Technical review of drawings, material, tolerances, and casting requirements before production.
A controlled tooling workflow
From component review to production-ready tooling
01
Review the component
We study the drawing, 3D model, material grade, quantity, and critical dimensions.
02
Plan the tooling
Pattern, mould, die, draft, shrinkage, and machining allowances are considered together.
03
Prepare for casting
Tooling is checked against the casting route to support clean filling and repeatable results.
04
Refine for production
Feedback from trial parts and inspection helps improve fitment, finish, and consistency.
Ready to develop a component?
Share your drawing and tooling requirements.
Send your drawing or 3D model, material specification, estimated quantity, and tolerance requirements. Our team can review the tooling route and recommend the right next step.
